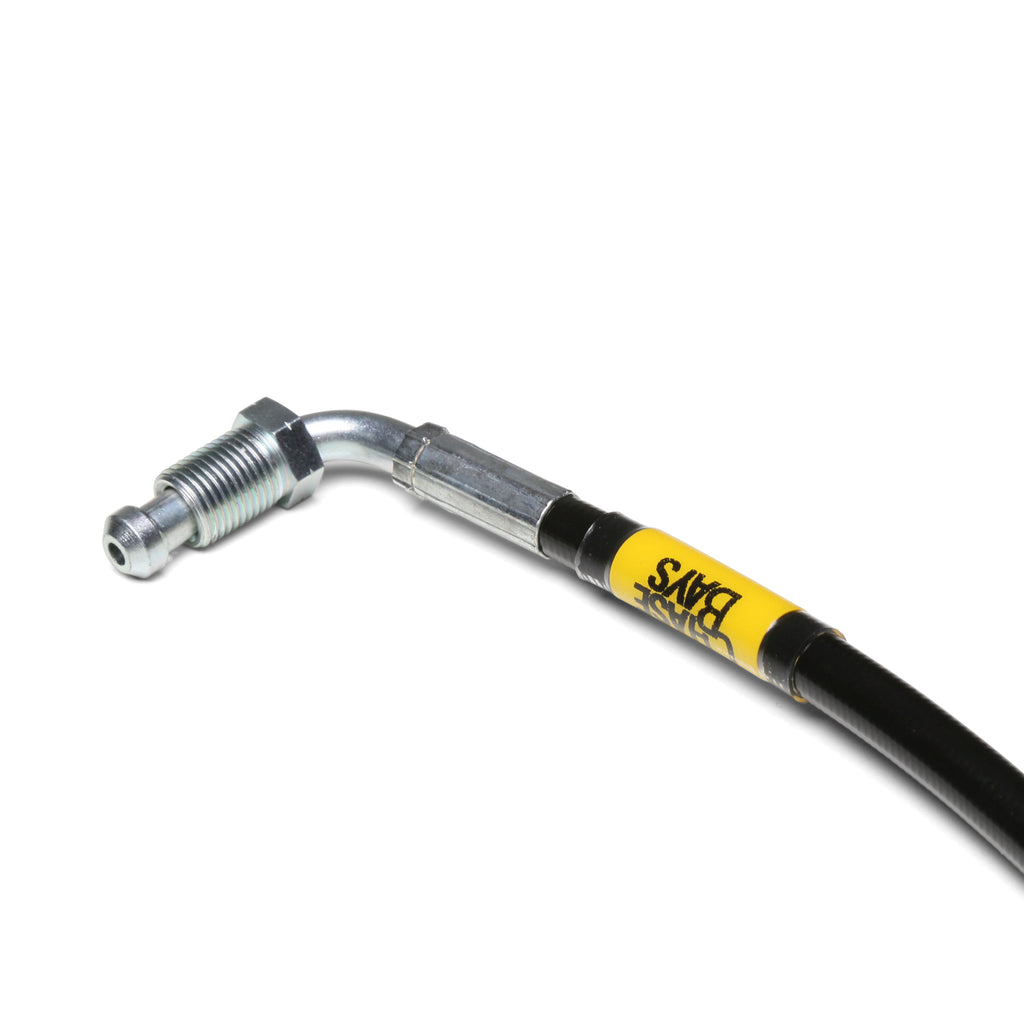

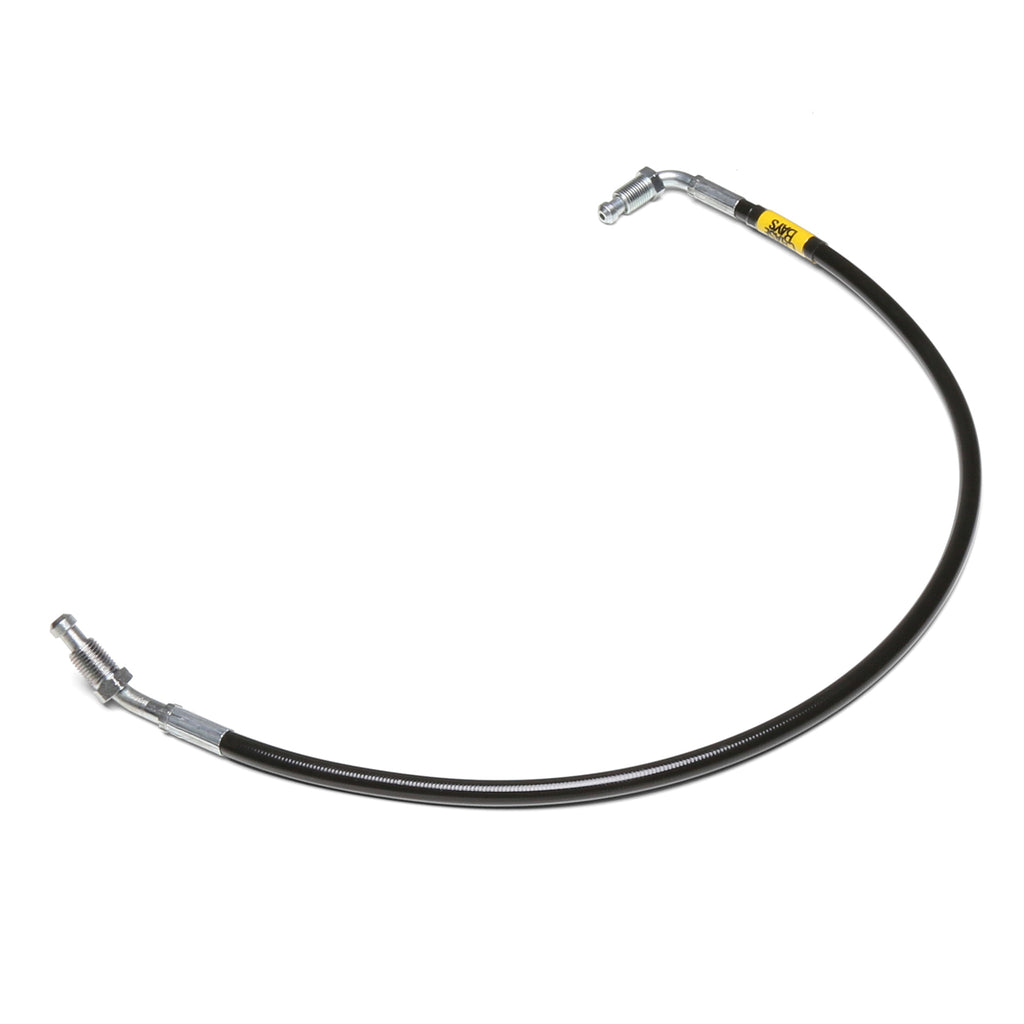

Chase Bays Clutch Line - BMW E30 with BMW Trans



This product is designed for those who want to eliminate engine bay clutter, improve engine bay aesthetics, improve pedal feel, and/or adapt a new transmission (if applicable). This a FULL replacement one-piece line from clutch master cylinder to slave cylinder. Other lines offered just replace the soft line between the stock hard lines.

It is made using -3AN stainless steel, Teflon PTFE lined, PVC coated line from the clutch master cylinder to the slave cylinder. Our PTFE Teflon inner core hose is manufactured from DuPont's Type 62 fine grade resin, 304 stainless steel wire braid. The hose has a burst pressure of 9000psi. It is chemically resistant and virtually unaffected by all commercial chemicals, acids, alcohols, coolants, hydrocarbons, solvents, synthetic compounds, and hydraulic fluids. More than half of those will hopefully never be on your car (hopefully!).

This Clutch Line works for:
• BMW E30 with M10
• BMW E30 with M42
• BMW E30 with M44
• BMW E30 with M20
• BMW E30 with M50
• BMW E30 with M52
• BMW E30 with M54
• BMW E30 with S50
• BMW E30 with S52
• BMW E30 with S54
• BMW E30 with M60
• BMW E30 with M62 / S62

Product Variants:
This Clutch Line has 2 variants to account for different slave cylinder variants found on BMW Manual Transmissions. Please check to see which Slave Cylinder type you have, their inlet locations require different line lengths and fittings!

Shown below is the E36 5 Speed Slave Cylinder. Example shown is from an E36 S50 5 Speed Transmission and Slave Cylinder. This is product SKU: CB-E30-CLUTCH.


Shown below is the E46 6 Speed Slave Cylinder. Example shown is from an E46 S54 6 Speed Transmission and Slave Cylinder. This is product SKU: CB-E30-S54CLUTCH.
