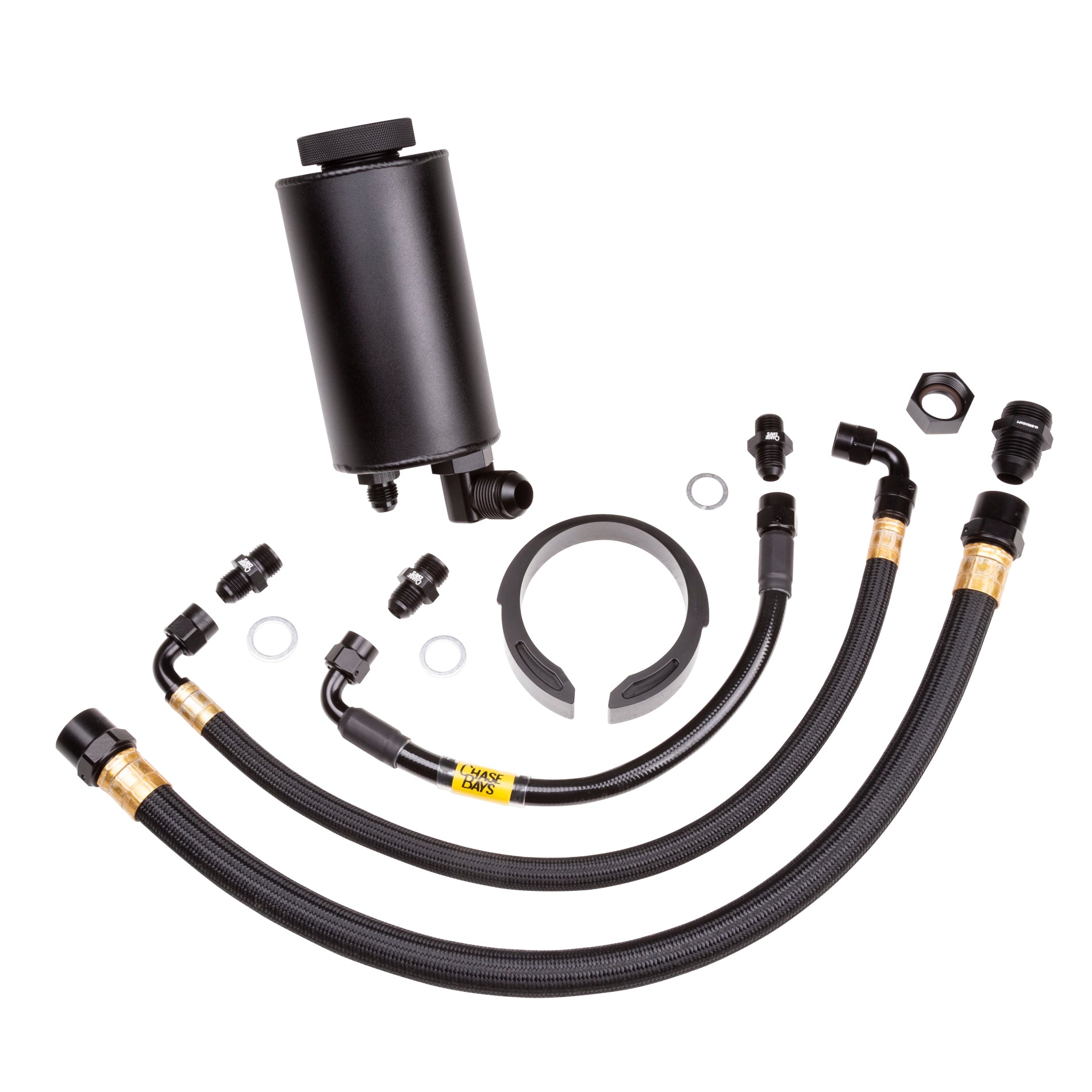

The Chase Bays Power Steering Kit for BMW E36 is designed to eliminate the common factory power steering leaks, fluid spillover, and overheating issues with improved aesthetics, durability, and stealthy design. It is a full 100% upgraded A.N. fitting replacement of the stock reservoir and hoses. From the reservoir to pump to rack. Our over-engineered Dual-Baffled Power Steering Reservoir (aeration and spillover proof) is at the core of this kit. It comes standard with an upgraded aluminum heatsink cooler that mounts directly to the steering rack for easy install and additional airflow.
Chase Bays only uses the highest quality components available. Our reservoir is constructed of 6061 aluminum and is anodized black with a laser etched cap. The reservoir itself uses our Delrin Shim to conveniently uses the OE BMW Reservoir Bracket (side note: This allows our Reservoir to be installed into virtually any BMW).
Dual Baffled Power Steering Reservoir
Countless hours of research and development were put into our newest Power Steering Reservoir. This isn’t as simple as putting 2 fittings on a fluid container and calling it a day. It is far more complex. The smaller fitting on the Reservoir is the fluid return from the rack. It can be sent back at pressures exceeding 100psi. When that hits the fluid in the reservoir it can cause extreme foaming aeration if not properly slowed down and directed. We have put some serious engineering time to the internal design to negate this entirely. We can't give away all of our secrets, but just know you won't have any aeration issues. Thats just 1 of the baffles, it doesn’t end there.
Go to any road race or drift event and look at all the factory (and most aftermarket) power steering reservoir. By the end of the day there is spillover all around the reservoir. It was our goal to be the 1 in 100 reservoirs to have no spillover from turbulence or overheating. The cap and cap bung in the reservoir itself are baffled together in such a way to completely block fluid while still providing passage for an air vent Power Steering Reservoirs need.

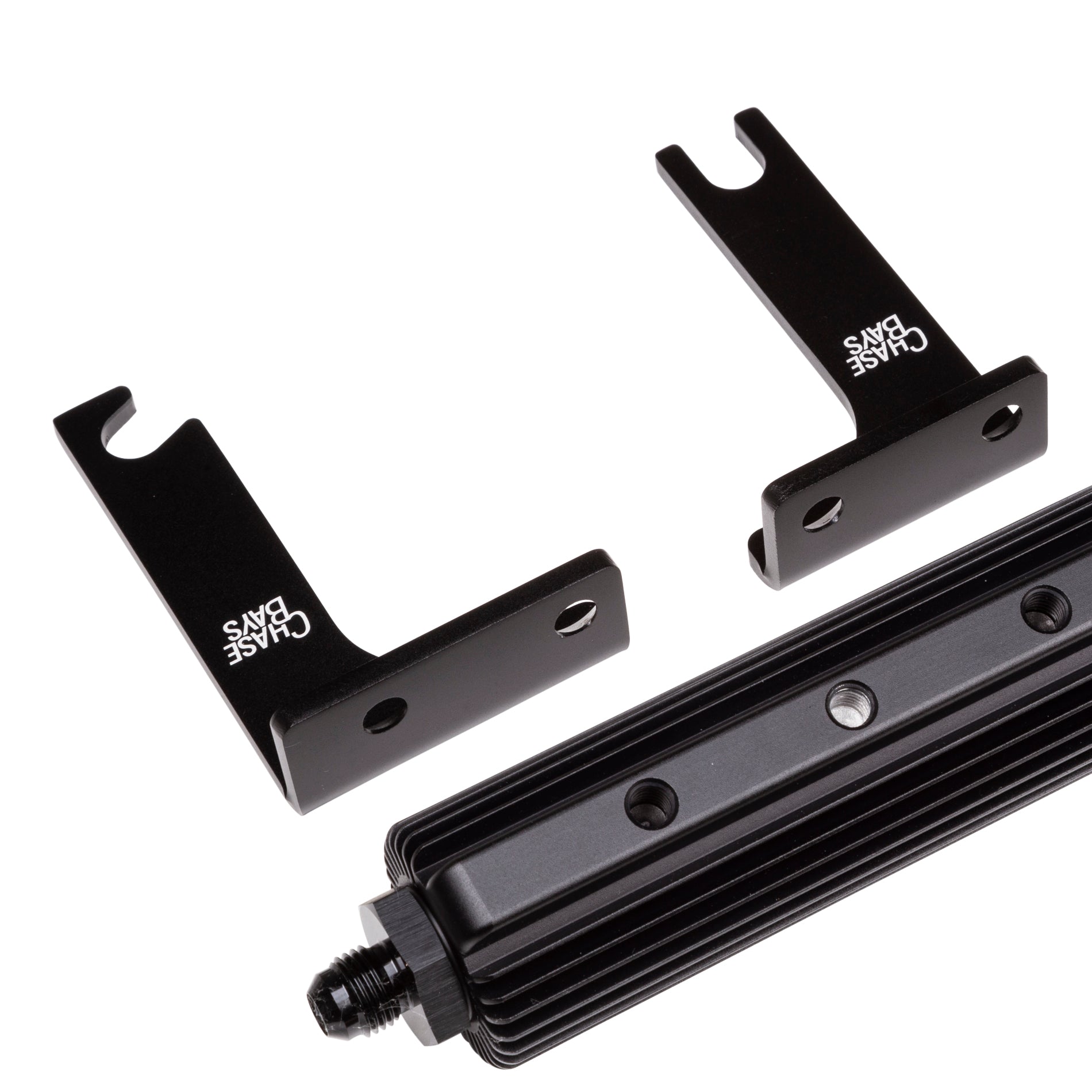

Our inline heatsink cooler is all aluminum in construction. It is black anodized for a durable stealthy finish. It is very compact but effective. We’ve seen 30º degree F drops in temperature from this cooler.
Hoses and Adapters

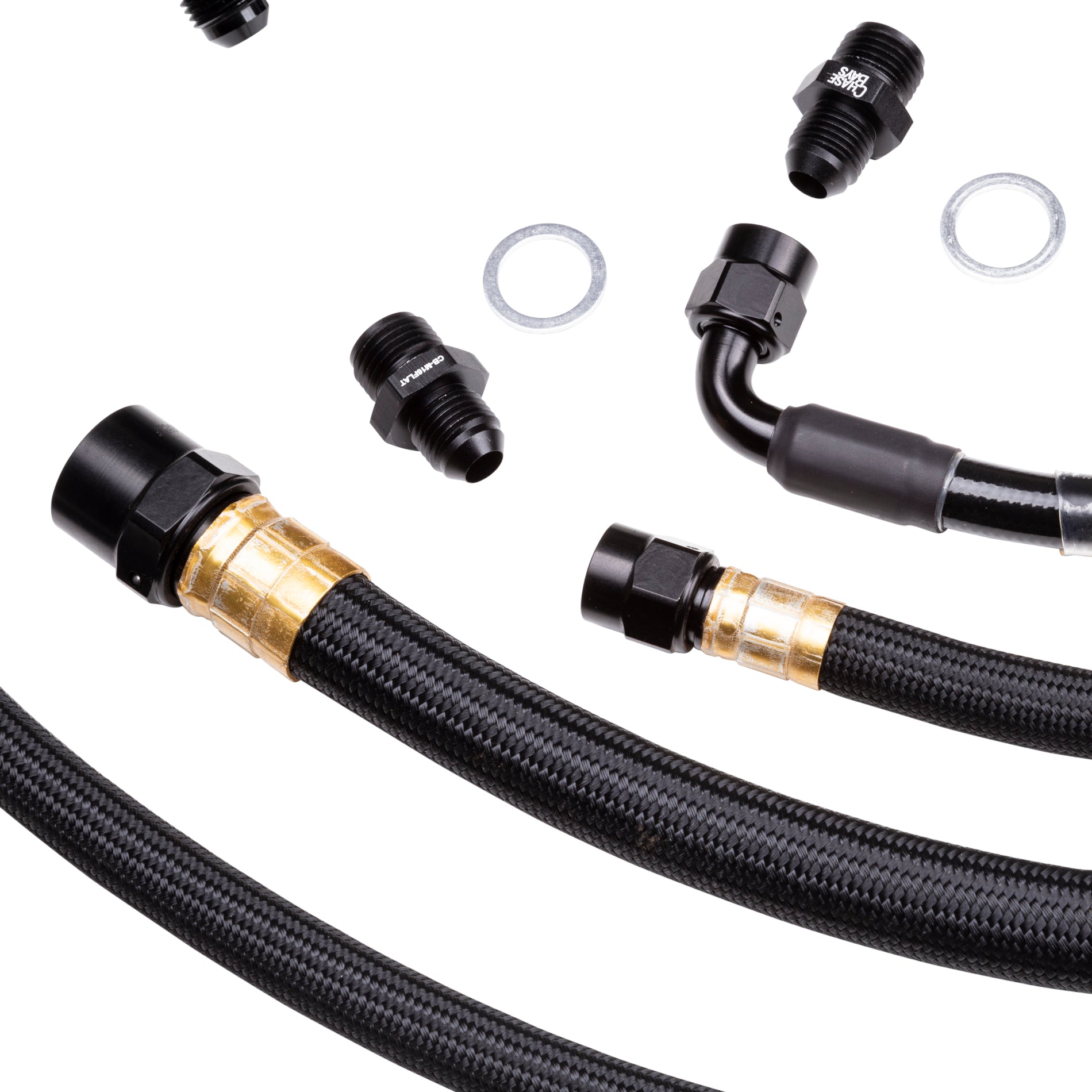

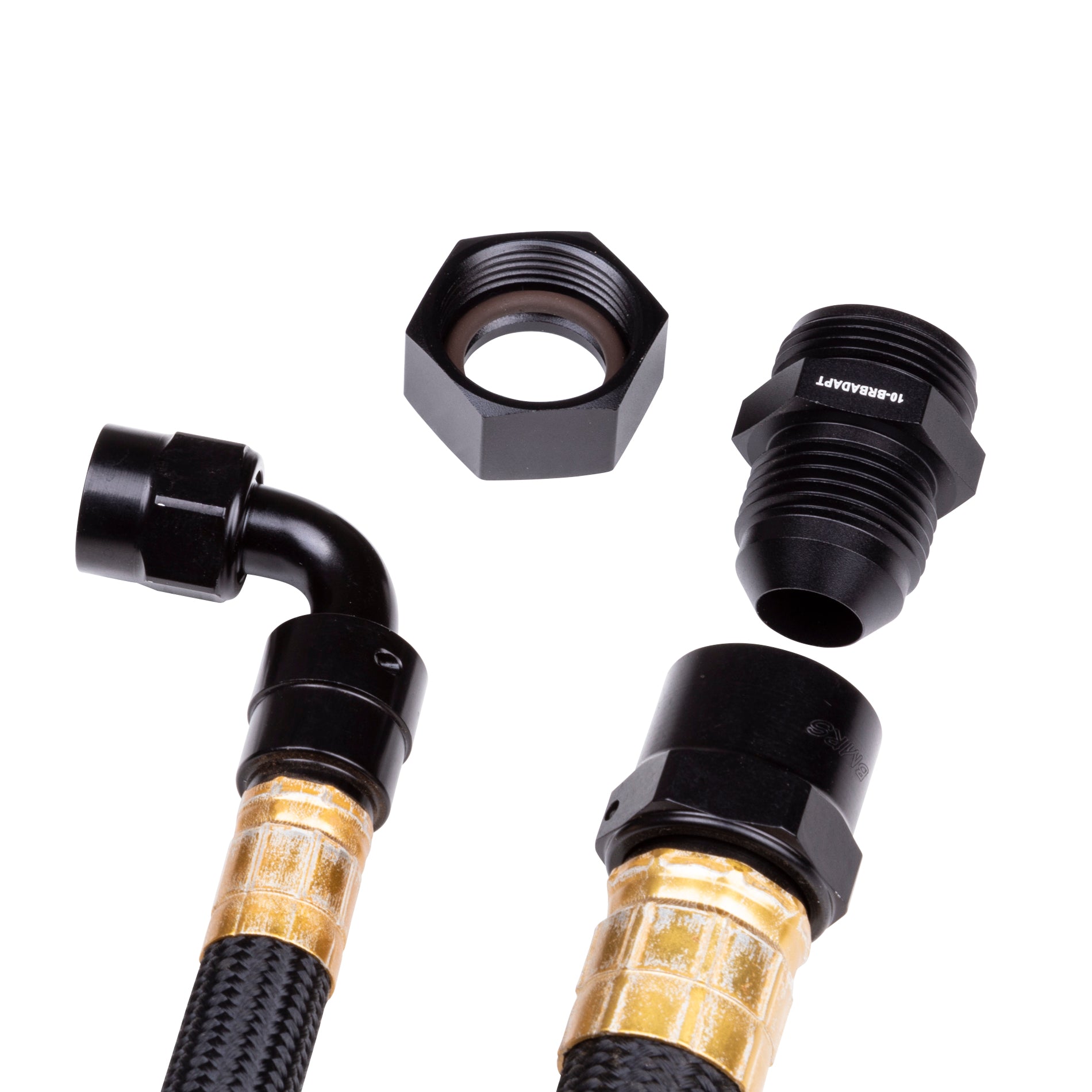

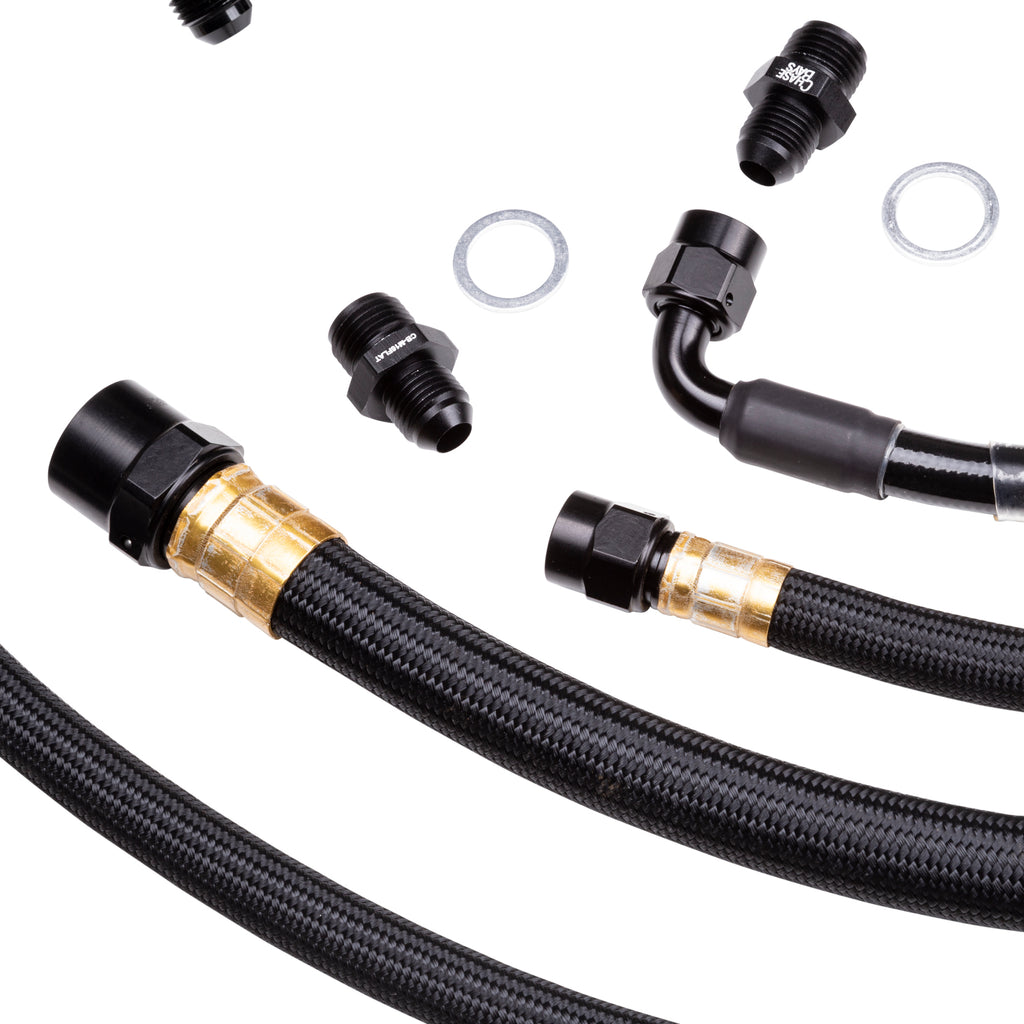

The high-pressure rack to pump hose is -6AN stainless steel, Teflon PTFE lined, and black PVC coated. This coating is crucial, it makes the hose resistant to chaffing if it routes against metal or a fellow hose. The -6AN rack to reservoir and -10AN reservoir to pump hoses are abrasion resistant, black nylon sheathed, and SS reinforced. They are all completed with high end black aluminum AN fittings.
BMW E46 with M52TU
BMW E46 with M54B25
BMW E46 with M54B30
